Description

Rittal WM 8017550

Name: WM 8017550 | WM wall-mounted enclosure double door, These double door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealin
Brand: RITTAL
SKU: WM 8017550
Price: 1008.37 USD
Availability: InStock

, WM wall-mounted enclosure double door, 2.5 mm (0.1 in), 1,000 mm x 550 mm ( 39.4 ? x 21.7 ? ), Door: Carbon steel, all-round foamed-in PU seal Housing: Carbon steel, Dipcoat-primed and powder-coated, textured paint Mounting panel: Zinc-plated, RAL 7035, Housing with door(s) Mounting plate Rear wall mounting holes, 2 mm (0.08 in), 2 mm (0.08 in), 600 mm, 210 mm, 41.3 in, 23.6 in, 8.27 in, NEMA 12 | NEMA 12, 2, Yes, 8538100000, 1 pc(s), 218.712 lbs, , These double door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a cold rolled steel body and door, and a zinc plated mounting panel.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:

RITTAL

Width:

41.30 (in)

Height:

23.60 (in)

Depth:

8.27 (in)

Data Sheet:

Material:

Door: Carbon steel, all-round foamed-in PU seal Housing: Carbon steel

Surface Finish:

Dipcoat-primed and powder-coated, textured paint Mounting panel: Zinc-plated

Color:

RAL 7035

Supply Includes:

Housing with door(s) Mounting plate Rear wall mounting holes

Mat Thick - Door:

2 mm (0.08 in)

Mat Thick - Enclosure:

2 mm (0.08 in)

Mat Thick - Mtg Plate:

2.5 mm (0.1 in)

Mounting Plate Dims:

1,000 mm x 550 mm ( 39.4 ? x 21.7 ? )

Number of Doors:

Lock Details:

Yes

Height (mm):

600mm

Depth (mm):

210mm

Width (in):

41.3in

Height (in):

23.6in

Depth (in):

8.27in

NEMA Rating:

NEMA 12 | NEMA 12

Customs Tariff No:

8538100000

Packaging Unit:

1 pc(s).

Net Weight (kg):

99.206

Net Weight (lb):

218.712

Gross Weight (kg):

100.584

Gross Weight (lb):

221.749

UPC Code:

83131

WM 8017584 | WM wall-mounted enclosure double door, These double door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealin

Data Sheet: Data Sheet

Material: Door: Carbon steel, all-round foamed-in PU seal Housing: Carbon steel

Surface Finish: Dipcoat-primed and powder-coated, textured paint Mounting panel: Zinc-plated

Color: RAL 7035

Supply Includes: Housing with door(s) Mounting plate Rear wall mounting holes

Mat Thick - Door: 2 mm (0.08 in)

Mat Thick - Enclosure: 2 mm (0.08 in)

Mat Thick - Mtg Plate: 2.5 mm (0.1 in)

Mounting Plate Dims: 1,450 mm x 850 mm ( 57.1 ? x 33.5 ? )

Number of Doors: 2

Lock Details: Yes

Height (mm): 900mm

Depth (mm): 300mm

Width (in): 59.1in

Height (in): 35.4in

Depth (in): 11.8in

NEMA Rating: NEMA 12 | NEMA 12

Customs Tariff No: 8538100000

Packaging Unit: 1 pc(s).

Net Weight (kg): 231.481

Net Weight (lb): 510.328

Gross Weight (kg): 237.985

Gross Weight (lb): 524.666

UPC Code: 83161

$1,831.77

Please Call/Email for Stock Availability (864)-458-9988

WM 8017587 | WM wall-mounted enclosure double door, These double door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealinImage_1 — Quick view

RITTAL

SKU: WM 8017587

WM 8017587 | WM wall-mounted enclosure double door, These double door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealin

Data Sheet: Data Sheet

Material: Door: Carbon steel, all-round foamed-in PU seal Housing: Carbon steel

Surface Finish: Dipcoat-primed and powder-coated, textured paint Mounting panel: Zinc-plated

Color: RAL 7035

Supply Includes: Housing with door(s) Mounting plate Rear wall mounting holes

Mat Thick - Door: 2 mm (0.08 in)

Mat Thick - Enclosure: 2 mm (0.08 in)

Mat Thick - Mtg Plate: 2.5 mm (0.1 in)

Mounting Plate Dims: 1,450 mm x 1,000 mm ( 57.1 ? x 39.4 ? )

Number of Doors: 2

Lock Details: Yes

Depth (mm): 300mm

Width (in): 59.1in

Height (in): 41.3in

Depth (in): 11.8in

NEMA Rating: NEMA 12 | NEMA 12

Customs Tariff No: 8538100000

Packaging Unit: 1 pc(s).

Net Weight (kg): 243.999

Net Weight (lb): 537.925

Gross Weight (kg): 244.709

Gross Weight (lb): 539.490

UPC Code: 83164

$1,976.36

Please Call/Email for Stock Availability (864)-458-9988

WM 8017590 | WM wall-mounted enclosure double door, These double door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealinImage_1 — Quick view

RITTAL

SKU: WM 8017590

WM 8017590 | WM wall-mounted enclosure double door, These double door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealin

Data Sheet: Data Sheet

Material: Door: Carbon steel, all-round foamed-in PU seal Housing: Carbon steel

Surface Finish: Dipcoat-primed and powder-coated, textured paint Mounting panel: Zinc-plated

Color: RAL 7035

Supply Includes: Housing with door(s) Mounting plate Rear wall mounting holes

Mat Thick - Door: 2 mm (0.08 in)

Mat Thick - Enclosure: 2 mm (0.08 in)

Mat Thick - Mtg Plate: 2.5 mm (0.1 in)

Mounting Plate Dims: 1,150 mm x 1,150 mm ( 45.3 ? x 45.3 ? )

Number of Doors: 2

Lock Details: Yes

Depth (mm): 300mm

Width (in): 47.2in

Height (in): 47.2in

Depth (in): 11.8in

NEMA Rating: NEMA 12 | NEMA 12

Customs Tariff No: 8538100000

Packaging Unit: 1 pc(s).

Net Weight (kg): 209.436

Net Weight (lb): 461.727

Gross Weight (kg): 210.000

Gross Weight (lb): 462.970

UPC Code: 83167

$1,865.54

Please Call/Email for Stock Availability (864)-458-9988

WM 8017582 | WM wall-mounted enclosure double door, These double door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealinImage_1 — Quick view

RITTAL

SKU: WM 8017582

WM 8017582 | WM wall-mounted enclosure double door, These double door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealin

Data Sheet: Data Sheet

Material: Door: Carbon steel, all-round foamed-in PU seal Housing: Carbon steel

Surface Finish: Dipcoat-primed and powder-coated, textured paint Mounting panel: Zinc-plated

Color: RAL 7035

Supply Includes: Housing with door(s) Mounting plate Rear wall mounting holes

Mat Thick - Door: 2 mm (0.08 in)

Mat Thick - Enclosure: 2 mm (0.08 in)

Mat Thick - Mtg Plate: 2.5 mm (0.1 in)

Mounting Plate Dims: 1,000 mm x 850 mm ( 39.4 ? x 33.5 ? )

Number of Doors: 2

Lock Details: Yes

Height (mm): 900mm

Depth (mm): 300mm

Width (in): 41.3in

Height (in): 35.4in

Depth (in): 11.8in

NEMA Rating: NEMA 12 | NEMA 12

Customs Tariff No: 8538100000

Packaging Unit: 1 pc(s).

Net Weight (kg): 147.994

Net Weight (lb): 326.271

Gross Weight (kg): 147.994

Gross Weight (lb): 326.271

UPC Code: 83159

$1,435.27

Please Call/Email for Stock Availability (864)-458-9988

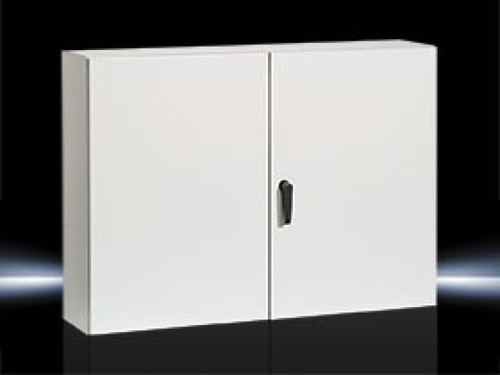

WM 8017565 | WM wall-mounted enclosure double door, These double door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealinImage_1 — Quick view

RITTAL

SKU: WM 8017565

WM 8017565 | WM wall-mounted enclosure double door, These double door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealin

Data Sheet: Data Sheet

Material: Door: Carbon steel, all-round foamed-in PU seal Housing: Carbon steel

Surface Finish: Dipcoat-primed and powder-coated, textured paint Mounting panel: Zinc-plated

Color: RAL 7035

Supply Includes: Housing with door(s) Mounting plate Rear wall mounting holes

Mat Thick - Door: 2 mm (0.08 in)

Mat Thick - Enclosure: 2 mm (0.08 in)

Mat Thick - Mtg Plate: 2.5 mm (0.1 in)

Mounting Plate Dims: 1,150 mm x 710 mm ( 45.3 ? x 28 ? )

Number of Doors: 2

Lock Details: Yes

Height (mm): 760mm

Depth (mm): 250mm

Width (in): 47.2in

Height (in): 29.9in

Depth (in): 9.84in

NEMA Rating: NEMA 12 | NEMA 12

Customs Tariff No: 8538100000

Packaging Unit: 1 pc(s).

Net Weight (kg): 174.162

Net Weight (lb): 383.961

Gross Weight (kg): 175.000

Gross Weight (lb): 385.808

UPC Code: 83144

$1,320.00

Please Call/Email for Stock Availability (864)-458-9988
