RITTAL
SKU: HD 1670600
HD 1670600 | HD Terminal box, WHD: 150x150x80 mm, Stainless steel 1.4301, with cover and silicone seal
Data Sheet: Data SheetMaterial: Housing and cover: Stainless steel 1.4301 (AISI 304), 1.5 mm Installation bracket: Carbon steel, zinc-plated, 2.0 mm Screw plug: Stainless steel Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600Base Material: Stainless steel 1.4301 (AISI 304)Surface Finish: Housing and cover: Brushed, grain 400, peak-to-valley height < 0.8 µm Seal: Blue, dyed (RAL 5010)Supply Includes: Housing of all-round solid construction Cover Installation bracket (pre-assembled) Seal and quick-release bolt (supplied loose)Depth (mm): 80mmDepth (in): 3.15inIP Rating: IP 66 | IP X9IK Code: IK08NEMA Rating: NEMA 1 | NEMA 3 | NEMA 3X | NEMA 4 | NEMA 4X | NEMA 12 | NEMA 13UL Type Rating: Type 1 | Type 3 | Type 3X | Type 4 | Type 4X | Type 12 | Type 13Customs Tariff No: 84879090Packaging Unit: 1 pc(s).Net Weight (kg): 1.600Net Weight (lb): 3.527Gross Weight (kg): 1.720Gross Weight (lb): 3.792EAN: 4028177639737ETIM 9: EC002713ETIM 8: EC002713ECLASS 8.0: 27180101$556.12Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: HD 1671600
HD 1671600 | HD Terminal box, WHD: 150x150x120 mm, Stainless steel 1.4301, with cover and silicone seal
Data Sheet: Data SheetMaterial: Housing and cover: Stainless steel 1.4301 (AISI 304), 1.5 mm Installation bracket: Carbon steel, zinc-plated, 2.0 mm Screw plug: Stainless steel Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600Base Material: Stainless steel 1.4301 (AISI 304)Surface Finish: Housing and cover: Brushed, grain 400, peak-to-valley height < 0.8 µm Seal: Blue, dyed (RAL 5010)Supply Includes: Housing of all-round solid construction Cover Installation bracket (pre-assembled) Seal and quick-release bolt (supplied loose)Depth (mm): 120mmDepth (in): 4.72inIP Rating: IP 66 | IP X9IK Code: IK08NEMA Rating: NEMA 1 | NEMA 3 | NEMA 3X | NEMA 4 | NEMA 4X | NEMA 12 | NEMA 13UL Type Rating: Type 1 | Type 3 | Type 3X | Type 4 | Type 4X | Type 12 | Type 13Customs Tariff No: 84879090Packaging Unit: 1 pc(s).Net Weight (kg): 1.906Net Weight (lb): 4.202Gross Weight (kg): 2.060Gross Weight (lb): 4.542EAN: 4028177639744ETIM 9: EC002713ETIM 8: EC002713ECLASS 8.0: 27180101$599.38Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: HD 1672600
HD 1672600 | HD Terminal box, WHD: 200x200x120 mm, Stainless steel 1.4301, with cover and silicone seal
Data Sheet: Data SheetMaterial: Housing and cover: Stainless steel 1.4301 (AISI 304), 1.5 mm Installation bracket: Carbon steel, zinc-plated, 2.0 mm Screw plug: Stainless steel Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600Base Material: Stainless steel 1.4301 (AISI 304)Surface Finish: Housing and cover: Brushed, grain 400, peak-to-valley height < 0.8 µm Seal: Blue, dyed (RAL 5010)Supply Includes: Housing of all-round solid construction Cover Installation bracket (pre-assembled) Seal and quick-release bolt (supplied loose)Depth (mm): 120mmDepth (in): 4.72inIP Rating: IP 66 | IP X9IK Code: IK08NEMA Rating: NEMA 1 | NEMA 3 | NEMA 3X | NEMA 4 | NEMA 4X | NEMA 12 | NEMA 13UL Type Rating: Type 1 | Type 3 | Type 3X | Type 4 | Type 4X | Type 12 | Type 13Customs Tariff No: 84879090Packaging Unit: 1 pc(s).Net Weight (kg): 2.837Net Weight (lb): 6.255Gross Weight (kg): 2.940Gross Weight (lb): 6.482EAN: 4028177639751ETIM 9: EC002713ETIM 8: EC002713ECLASS 8.0: 27180101$639.47Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: HD 1675600

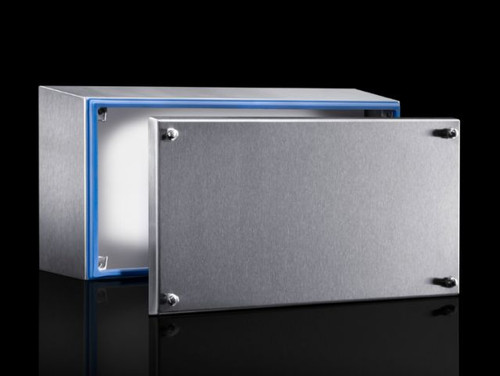

HD 1675600 | HD Terminal box, WHD: 400x200x120 mm, Stainless steel 1.4301, with cover and silicone seal
Data Sheet: Data SheetMaterial: Housing and cover: Stainless steel 1.4301 (AISI 304), 1.5 mm Installation bracket: Carbon steel, zinc-plated, 2.0 mm Screw plug: Stainless steel Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600Base Material: Stainless steel 1.4301 (AISI 304)Surface Finish: Housing and cover: Brushed, grain 400, peak-to-valley height < 0.8 µm Seal: Blue, dyed (RAL 5010)Supply Includes: Housing of all-round solid construction Cover Installation bracket (pre-assembled) Seal and quick-release bolt (supplied loose)Depth (mm): 120mmDepth (in): 4.72inIP Rating: IP 66 | IP X9IK Code: IK08NEMA Rating: NEMA 1 | NEMA 3 | NEMA 3X | NEMA 4 | NEMA 4X | NEMA 12 | NEMA 13UL Type Rating: Type 1 | Type 3 | Type 3X | Type 4 | Type 4X | Type 12 | Type 13Customs Tariff No: 84879090Packaging Unit: 1 pc(s).Net Weight (kg): 4.631Net Weight (lb): 10.210Gross Weight (kg): 4.720Gross Weight (lb): 10.406EAN: 4028177639775ETIM 9: EC002713ETIM 8: EC002713ECLASS 8.0: 27180101$631.38Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: HD 1676600

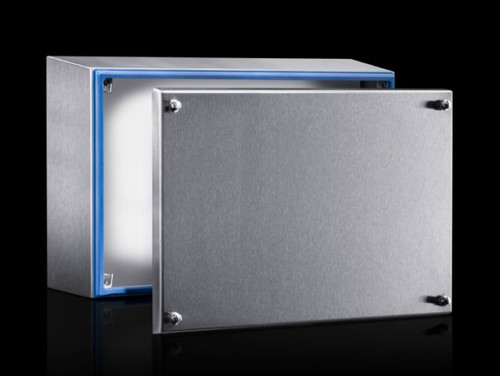

HD 1676600 | HD Terminal box, WHD: 400x300x120 mm, Stainless steel 1.4301, with cover and silicone seal
Data Sheet: Data SheetMaterial: Housing and cover: Stainless steel 1.4301 (AISI 304), 1.5 mm Installation bracket: Carbon steel, zinc-plated, 2.0 mm Screw plug: Stainless steel Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600Base Material: Stainless steel 1.4301 (AISI 304)Surface Finish: Housing and cover: Brushed, grain 400, peak-to-valley height < 0.8 µm Seal: Blue, dyed (RAL 5010)Supply Includes: Housing of all-round solid construction Cover Installation bracket (pre-assembled) Seal and quick-release bolt (supplied loose)Depth (mm): 120mmDepth (in): 4.72inIP Rating: IP 66 | IP X9IK Code: IK08NEMA Rating: NEMA 1 | NEMA 3 | NEMA 3X | NEMA 4 | NEMA 4X | NEMA 12 | NEMA 13UL Type Rating: Type 1 | Type 3 | Type 3X | Type 4 | Type 4X | Type 12 | Type 13Customs Tariff No: 84879090Packaging Unit: 1 pc(s).Net Weight (kg): 5.978Net Weight (lb): 13.179Gross Weight (kg): 6.120Gross Weight (lb): 13.492EAN: 4028177662728ETIM 9: EC002713ETIM 8: EC002713ECLASS 8.0: 27180101$669.84Please Call/Email for Stock Availability (864)-458-9988
