RITTAL
SKU: SE 5831600
SE 5831600 | VX SE enclosure system, Individual carbon steel enclosure with stable enclosure body, two integrated mounting levels, screw-fastened rear panel and door. Roof and sides from a single piece with roll-formed frame. System-compatible and ex
Data Sheet: Data SheetMaterial: Housing: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mmBase Material: Carbon steelSurface Finish: Housing, door and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-platedColor: RAL 7035Supply Includes: Housing, solid top and sides Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Mounting panel Base Plates Rear panel, detachable Lock: 3 mm double-bit 2 punched rails, 18 x 39 mm Rear wall, one-pieceMounting Plate Dims: 699 mm x 1,696 mm ( 27.5 ? x 66.8 ? )Number of Doors: 1Width (mm): 800mmDepth (mm): 400mmWidth (in): 31.5inHeight (in): 70.9inDepth (in): 15.7inIP Rating: IP 55IK Code: IK10NEMA Rating: NEMA 3R | NEMA 12UL Type Rating: Type 1 | Type 2 | Type 3 | Type 3R | Type 12Customs Tariff No: 94032080Packaging Unit: 1 pc(s).Net Weight (kg): 115.650Net Weight (lb): 254.964Gross Weight (kg): 117.000Gross Weight (lb): 257.941EAN: 4028177959125ETIM 9: EC000261ETIM 8: EC000261ECLASS 8.0: 27180101$1,992.57Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SE 5845600
SE 5845600 | VX SE enclosure system, Individual carbon steel enclosure with stable enclosure body, two integrated mounting levels, screw-fastened rear panel and door. Roof and sides from a single piece with roll-formed frame. System-compatible and ex
Data Sheet: Data SheetMaterial: Housing: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mmBase Material: Carbon steelSurface Finish: Housing, door and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-platedColor: RAL 7035Supply Includes: Housing, solid top and sides Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Mounting panel Base Plates Rear panel, detachable Lock: 3 mm double-bit 2 punched rails, 18 x 39 mm Rear wall, one-pieceMounting Plate Dims: 1,099 mm x 1,896 mm ( 43.3 ? x 74.6 ? )Number of Doors: 2Depth (mm): 600mmWidth (in): 47.2inHeight (in): 78.7inDepth (in): 23.6inIP Rating: IP 55IK Code: IK10NEMA Rating: NEMA 3R | NEMA 12UL Type Rating: Type 1 | Type 2 | Type 3 | Type 3R | Type 12Customs Tariff No: 94032080Packaging Unit: 1 pc(s).Net Weight (kg): 196.600Net Weight (lb): 433.428Gross Weight (kg): 205.700Gross Weight (lb): 453.490EAN: 4028177959231ETIM 9: EC000261ETIM 8: EC000261ECLASS 8.0: 27180101$3,068.26Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SE 5841600
SE 5841600 | VX SE enclosure system, Individual carbon steel enclosure with stable enclosure body, two integrated mounting levels, screw-fastened rear panel and door. Roof and sides from a single piece with roll-formed frame. System-compatible and ex
Data Sheet: Data SheetMaterial: Housing: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mmBase Material: Carbon steelSurface Finish: Housing, door and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-platedColor: RAL 7035Supply Includes: Housing, solid top and sides Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Mounting panel Base Plates Rear panel, detachable Lock: 3 mm double-bit 2 punched rails, 18 x 39 mm Rear wall, one-pieceMounting Plate Dims: 1,099 mm x 1,696 mm ( 43.3 ? x 66.8 ? )Number of Doors: 2Depth (mm): 400mmWidth (in): 47.2inHeight (in): 70.9inDepth (in): 15.7inIP Rating: IP 55IK Code: IK10NEMA Rating: NEMA 3R | NEMA 12UL Type Rating: Type 1 | Type 2 | Type 3 | Type 3R | Type 12Customs Tariff No: 94032080Packaging Unit: 1 pc(s).Net Weight (kg): 165.330Net Weight (lb): 364.490Gross Weight (kg): 173.400Gross Weight (lb): 382.281EAN: 4028177959132ETIM 9: EC000261ETIM 8: EC000261ECLASS 8.0: 27180101$2,980.67Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: VX 8620100

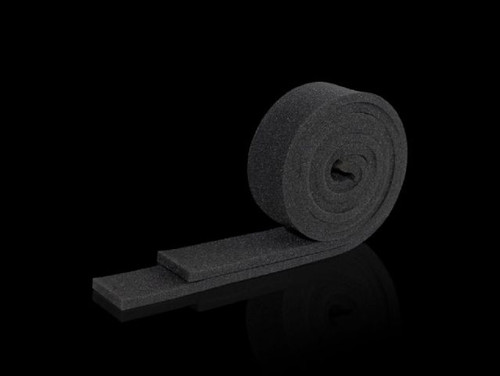

VX 8620100 | Filter Mat For base/plinth trim panels, vented, The filter mat can be easily inserted into the trim panel from the rear. Can be shortened to required length., 2 x 2 m rolls, 56039390, 1 pc(s)., 0.3, 0.34,
Data Sheet: Data SheetSupply Includes: 2 x 2 m rollsCustoms Tariff No: 56039390Packaging Unit: 1 pc(s).Net Weight (kg): 0.300Net Weight (lb): 0.661Gross Weight (kg): 0.340Gross Weight (lb): 0.750EAN: 4028177929531ETIM 9: EC002513ECLASS 8.0: 27180706$188.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: VX 8617010
VX 8617010 | System chassis 18 x 64 mm for VX, For variable and individual interior installation of the enclosure frame on the outer mounting level., System punchings on all four sides, With pre-bayed enclosures, the system chassis can also be mounte
Data Sheet: Data Sheet$187.75Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: VX 8617030
VX 8617030 | System chassis 18 x 64 mm for VX, For variable and individual interior installation of the enclosure frame on the outer mounting level., System punchings on all four sides, With pre-bayed enclosures, the system chassis can also be mounte
Data Sheet: Data SheetMaterial: Carbon steelSurface Finish: Zinc-platedSupply Includes: Assembly componentsCustoms Tariff No: 73269098Packaging Unit: 4 pc(s).Net Weight (kg): 2.200Net Weight (lb): 4.850Gross Weight (kg): 2.520Gross Weight (lb): 5.556EAN: 4028177829060ETIM 9: EC002620ECLASS 8.0: 27189234$262.19Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: VX 8617020
VX 8617020 | System chassis 18 x 64 mm for VX, For variable and individual interior installation of the enclosure frame on the outer mounting level., System punchings on all four sides, With pre-bayed enclosures, the system chassis can also be mounte
Data Sheet: Data SheetMaterial: Carbon steelSurface Finish: Zinc-platedSupply Includes: Assembly componentsCustoms Tariff No: 73269098Packaging Unit: 4 pc(s).Net Weight (kg): 2.000Net Weight (lb): 4.409Gross Weight (kg): 2.075Gross Weight (lb): 4.575EAN: 4028177829053ETIM 9: EC002620ECLASS 8.0: 27189234$224.84Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SK 3314030

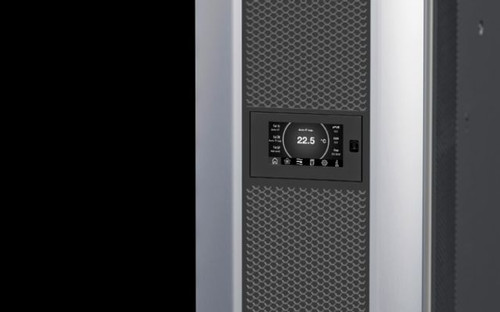

SK 3314030 | Touchscreen display, color For LCP rack/Inline, CW, All relevant operating parameters are shown directly on the LCP via the display, and this enables you to directly monitor important functions of the LCP directly and adjust the settings
Data Sheet: Data SheetMaterial: PlasticColor: RAL 9005Supply Includes: Touchscreen display, color Assembly componentsCustoms Tariff No: 85312040Packaging Unit: 1 pc(s).Net Weight (kg): 0.270Net Weight (lb): 0.595Gross Weight (kg): 0.307Gross Weight (lb): 0.677EAN: 4028177984950ECLASS 8.0: 27180712$0.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: HD 4000508

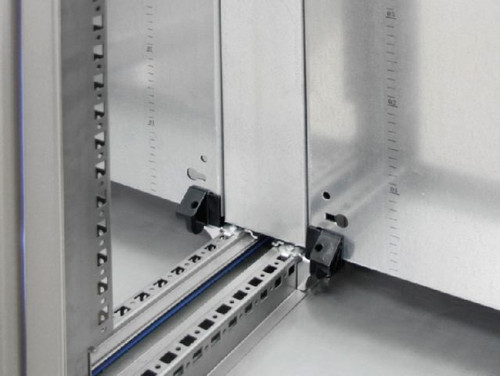

HD 4000508 | Mounting plates spacer for large enclosure HD, For a continuous mounting surface in bayed suites where the mounting plate is set forward., Carbon steel, 2 mm, Zinc-plated, Assembly components, 83024200, 1 pc(s)., 5.5, 6,
Data Sheet: Data SheetMaterial: Carbon steel, 2 mmSurface Finish: Zinc-platedSupply Includes: Assembly componentsCustoms Tariff No: 83024200Packaging Unit: 1 pc(s).Net Weight (kg): 5.500Net Weight (lb): 12.125Gross Weight (kg): 6.000Gross Weight (lb): 13.228EAN: 4028177693722ETIM 9: EC000213ETIM 8: EC000213ECLASS 8.0: 27409216$301.16Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SV 3452500
SV 3452500 | Conductor terminal, For connecting round conductors and laminated copper bars., Carbon steel, Zinc-plated, passivated, 85369010, 15 pc(s)., 0.81, 1.004,
Data Sheet: Data SheetMaterial: Carbon steelSurface Finish: Zinc-plated, passivatedCustoms Tariff No: 85369010Packaging Unit: 15 pc(s).Net Weight (kg): 0.810Net Weight (lb): 1.786Gross Weight (kg): 1.004Gross Weight (lb): 2.213EAN: 4028177042698ETIM 9: EC000001ETIM 8: EC000001ECLASS 8.0: 27141146$90.58Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SV 3454500
SV 3454500 | Conductor terminal, For connecting round conductors and laminated copper bars., Carbon steel, Zinc-plated, passivated, 85369010, 15 pc(s)., 1.95, 1.982,
Data Sheet: Data Sheet$201.40Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SV 3451500
SV 3451500 | Conductor terminal, For connecting round conductors and laminated copper bars., Carbon steel, Zinc-plated, passivated, 85369010, 15 pc(s)., 0.375, 0.44,
Data Sheet: Data Sheet$59.97Please Call/Email for Stock Availability (864)-458-9988
