RITTAL
SKU: TP 6740600
TP 6740600 | TP Consoles, One-piece console for operating and monitoring, with large mounting plate and a high protection category of IP 55, available in four different widths. The AX lock plate ensures a uniform appearance, and two-part gland plates
Data Sheet: Data SheetMaterial: Housing: Carbon steel, 1.5 mm Door and console lid: Carbon steel, 2.0 mm, all-round foamed-in PU seal Mounting panel: Carbon steel, 3.0 mmBase Material: Carbon steelSurface Finish: Housing, cover and door: Dipcoat-primed, powder-coated on the outside, textured paint Mounting panel: Zinc-platedColor: RAL 7035Supply Includes: Housing, solid back and sides Door or double door at front, with locking rod Mounting panel Cover hinged at rear, 2 stays with automatic locking. Unlatching automatically on the left, manually on the right Base PlatesMounting Plate Dims: 930 mm x 900 mm ( 36.6 ? x 35.4 ? )Number of Doors: 2Height (mm): 975mmDepth (mm): 400mmWidth (in): 39.4inHeight (in): 38.4inDepth (in): 15.7inIP Rating: IP 55IK Code: IK08NEMA Rating: NEMA 12Customs Tariff No: 94032080Packaging Unit: 1 pc(s).Net Weight (kg): 73.000Net Weight (lb): 160.937Gross Weight (kg): 75.000Gross Weight (lb): 165.346EAN: 4028177959941ETIM 9: EC000784ETIM 8: EC000784ECLASS 8.0: 27180504$2,154.89Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: TP 6746600
TP 6746600 | TP Consoles, One-piece console for operating and monitoring, with large mounting plate and a high protection category of IP 55, available in four different widths. The AX lock plate ensures a uniform appearance, and two-part gland plates
Data Sheet: Data SheetMaterial: Housing: Carbon steel, 1.5 mm Door and console lid: Carbon steel, 2.0 mm, all-round foamed-in PU seal Mounting panel: Carbon steel, 3.0 mmBase Material: Carbon steelSurface Finish: Housing, cover and door: Dipcoat-primed, powder-coated on the outside, textured paint Mounting panel: Zinc-platedColor: RAL 7035Supply Includes: Housing, solid back and sides Door or double door at front, with locking rod Mounting panel Cover hinged at rear, 2 stays with automatic locking. Unlatching automatically on the left, manually on the right Base PlatesMounting Plate Dims: 530 mm x 900 mm ( 20.9 ? x 35.4 ? )Number of Doors: 1Width (mm): 600mmHeight (mm): 975mmDepth (mm): 400mmWidth (in): 23.6inHeight (in): 38.4inDepth (in): 15.7inIP Rating: IP 55IK Code: IK08NEMA Rating: NEMA 12Customs Tariff No: 94032080Packaging Unit: 1 pc(s).Net Weight (kg): 48.000Net Weight (lb): 105.822Gross Weight (kg): 51.600Gross Weight (lb): 113.758EAN: 4028177959927ETIM 9: EC000784ETIM 8: EC000784ECLASS 8.0: 27180504$1,624.17Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: TP 6748600
TP 6748600 | TP Consoles, One-piece console for operating and monitoring, with large mounting plate and a high protection category of IP 55, available in four different widths. The AX lock plate ensures a uniform appearance, and two-part gland plates
Data Sheet: Data SheetMaterial: Housing: Carbon steel, 1.5 mm Door and console lid: Carbon steel, 2.0 mm, all-round foamed-in PU seal Mounting panel: Carbon steel, 3.0 mmBase Material: Carbon steelSurface Finish: Housing, cover and door: Dipcoat-primed, powder-coated on the outside, textured paint Mounting panel: Zinc-platedColor: RAL 7035Supply Includes: Housing, solid back and sides Door or double door at front, with locking rod Mounting panel Cover hinged at rear, 2 stays with automatic locking. Unlatching automatically on the left, manually on the right Base PlatesMounting Plate Dims: 730 mm x 900 mm ( 28.7 ? x 35.4 ? )Number of Doors: 1Width (mm): 800mmHeight (mm): 975mmDepth (mm): 400mmWidth (in): 31.5inHeight (in): 38.4inDepth (in): 15.7inIP Rating: IP 55IK Code: IK08NEMA Rating: NEMA 12Customs Tariff No: 94032080Packaging Unit: 1 pc(s).Net Weight (kg): 62.500Net Weight (lb): 137.789Gross Weight (kg): 63.700Gross Weight (lb): 140.434EAN: 4028177959934ETIM 9: EC000784ETIM 8: EC000784ECLASS 8.0: 27180504$1,904.87Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: PK 9550000
PK 9550000 | Mounting panel for PK, 2.5 mm melamine phenol-coated laminated paper, RAL 7035, Mounting panel Self-tapping assembly screws, 39269097, 4 pc(s)., 1.2, 1.251,
Data Sheet: Data SheetMaterial: 2.5 mm melamine phenol-coated laminated paperColor: RAL 7035Supply Includes: Mounting panel Self-tapping assembly screwsMounting Plate Dims: 331 mm x 220 mm ( 13 ? x 8.66 ? )Customs Tariff No: 39269097Packaging Unit: 4 pc(s).Net Weight (kg): 1.200Net Weight (lb): 2.646Gross Weight (kg): 1.251Gross Weight (lb): 2.758EAN: 4028177140134ETIM 9: EC000213ECLASS 8.0: 27409216$301.04Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: PK 9548000
PK 9548000 | Mounting panel for PK, 2.5 mm melamine phenol-coated laminated paper, RAL 7035, Mounting panel Self-tapping assembly screws, 39269097, 10 pc(s)., 0.91, 1.07,
Data Sheet: Data SheetMaterial: 2.5 mm melamine phenol-coated laminated paperColor: RAL 7035Supply Includes: Mounting panel Self-tapping assembly screwsMounting Plate Dims: 150 mm x 150 mm ( 5.91 ? x 5.91 ? )Customs Tariff No: 39269097Packaging Unit: 10 pc(s).Net Weight (kg): 0.910Net Weight (lb): 2.006Gross Weight (kg): 1.070Gross Weight (lb): 2.359EAN: 4028177140097ETIM 9: EC000213ECLASS 8.0: 27409216$224.84Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: PK 9549000
PK 9549000 | Mounting panel for PK, 2.5 mm melamine phenol-coated laminated paper, RAL 7035, Mounting panel Self-tapping assembly screws, 39269097, 8 pc(s)., 1, 1.204,
Data Sheet: Data SheetMaterial: 2.5 mm melamine phenol-coated laminated paperColor: RAL 7035Supply Includes: Mounting panel Self-tapping assembly screwsMounting Plate Dims: 220 mm x 150 mm ( 8.66 ? x 5.91 ? )Customs Tariff No: 39269097Packaging Unit: 8 pc(s).Net Weight (kg): 1.000Net Weight (lb): 2.205Gross Weight (kg): 1.204Gross Weight (lb): 2.654EAN: 4028177140110ETIM 9: EC000213ECLASS 8.0: 27409216$238.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: VX 5302025
VX 5302025 | Combination rails for VX, VX IT, TX CableNet, Combination of C rail for cable clamping with cable clamps and a cable guide rail with hammer heads for cable routing. The cables can optionally be secured to the combination rail with cable
Data Sheet: Data Sheet$132.12Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: VX 5302022
VX 5302022 | Combination rails for VX, VX IT, TX CableNet, Combination of C rail for cable clamping with cable clamps and a cable guide rail with hammer heads for cable routing. The cables can optionally be secured to the combination rail with cable
Data Sheet: Data SheetMaterial: Carbon steelSurface Finish: Zinc-platedSupply Includes: Assembly componentsCustoms Tariff No: 73269098Packaging Unit: 4 pc(s).Net Weight (kg): 1.720Net Weight (lb): 3.792Gross Weight (kg): 2.620Gross Weight (lb): 5.776EAN: 4028177952546ETIM 9: EC000322ECLASS 8.0: 27400604$94.96Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: VX 5302021
VX 5302021 | Combination rails for VX, VX IT, TX CableNet, Combination of C rail for cable clamping with cable clamps and a cable guide rail with hammer heads for cable routing. The cables can optionally be secured to the combination rail with cable
Data Sheet: Data SheetMaterial: Carbon steelSurface Finish: Zinc-platedSupply Includes: Assembly componentsCustoms Tariff No: 73269098Packaging Unit: 4 pc(s).Net Weight (kg): 1.700Net Weight (lb): 3.748Gross Weight (kg): 2.080Gross Weight (lb): 4.586EAN: 4028177952539ETIM 9: EC000322ECLASS 8.0: 27400604$83.83Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: VX 5302020
VX 5302020 | Combination rails for VX, VX IT, TX CableNet, Combination of C rail for cable clamping with cable clamps and a cable guide rail with hammer heads for cable routing. The cables can optionally be secured to the combination rail with cable
Data Sheet: Data SheetMaterial: Carbon steelSurface Finish: Zinc-platedSupply Includes: Assembly componentsCustoms Tariff No: 73269098Packaging Unit: 4 pc(s).Net Weight (kg): 1.508Net Weight (lb): 3.325Gross Weight (kg): 1.543Gross Weight (lb): 3.402EAN: 4028177952522ETIM 9: EC000322ECLASS 8.0: 27400604$78.39Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: TS 4163000
TS 4163000 | Threaded blocks, Used on enclosures and rails with rectangular 12.5 x 10.5 mm system punching with snap-off insertion aid, made from die-cast zinc., On mounting chassis 45 x 88 mm, On the horizontal VX SE enclosure section top, in depth,
Data Sheet: Data SheetCustoms Tariff No: 73181692Packaging Unit: 50 pc(s).Net Weight (kg): 0.400Net Weight (lb): 0.882Gross Weight (kg): 0.461Gross Weight (lb): 1.016EAN: 4028177092969ETIM 9: EC002358ETIM 8: EC002358ECLASS 8.0: 23110815$67.55Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL

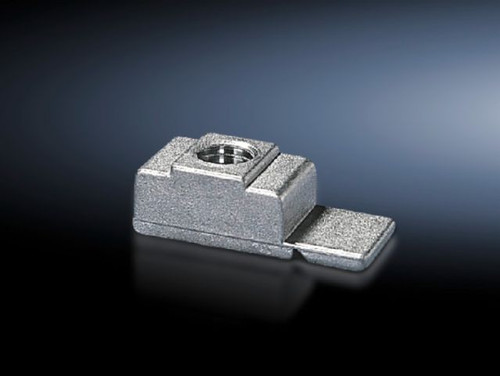

SKU: TS 4162000
TS 4162000 | Threaded blocks, Used on enclosures and rails with rectangular 12.5 x 10.5 mm system punching with snap-off insertion aid, made from die-cast zinc., On mounting chassis 45 x 88 mm, On the horizontal VX SE enclosure section top, in depth,
Data Sheet: Data SheetCustoms Tariff No: 73181692Packaging Unit: 50 pc(s).Net Weight (kg): 0.450Net Weight (lb): 0.992Gross Weight (kg): 0.500Gross Weight (lb): 1.102EAN: 4028177092945ETIM 9: EC002358ETIM 8: EC002358ECLASS 8.0: 23110815$67.55Please Call/Email for Stock Availability (864)-458-9988
